Our History
There is a fascinating history to why there is a Georgian engine house at the summit of the Kennet & Avon Canal and inside it our two wonderful steam pumping engines.
The first design of the Kennet & Avon Canal by the distinguished Scottish civil engineer, John Rennie, called for a 4.5 km (2.5 mile) tunnel between the Wiltshire villages of Crofton and Burbage but, in those days, tunnelling was a very expensive and uncertain process and a cheaper alternative was sought. This involved raising the summit level of the canal and constructing a much shorter tunnel.
However, this new summit was 12 m (40 ft) higher than any reliable local, natural water source and so a pumping station was needed at Crofton to keep it topped-up. It was estimated that this scheme saved £41,000 (equivalent these days to about to about £8,000,000) in the cost of canal construction, a very substantial saving.
Crofton Pumping Station was built in 1807 and started work soon after. The first engine installed in the building was a 0.9 m (36 inch) bore Boulton and Watt which had a wooden beam and began working in 1809. In 1812, a 1.06 m (42 inch) bore Boulton and Watt engine was installed beside it. In 1846, the 0.9 m bore Boulton and Watt was replaced by a Sims Combined Cylinders Engine constructed by Harvey of Hayle.
Did you know? The pumping station is located 1¼ km (¾ mile) to the east of the summit. It raises the water to a level slightly above that of the summit, delivering it via a specially constructed feeder channel, called, from Cornish tin mine practice, a Leat.
Today

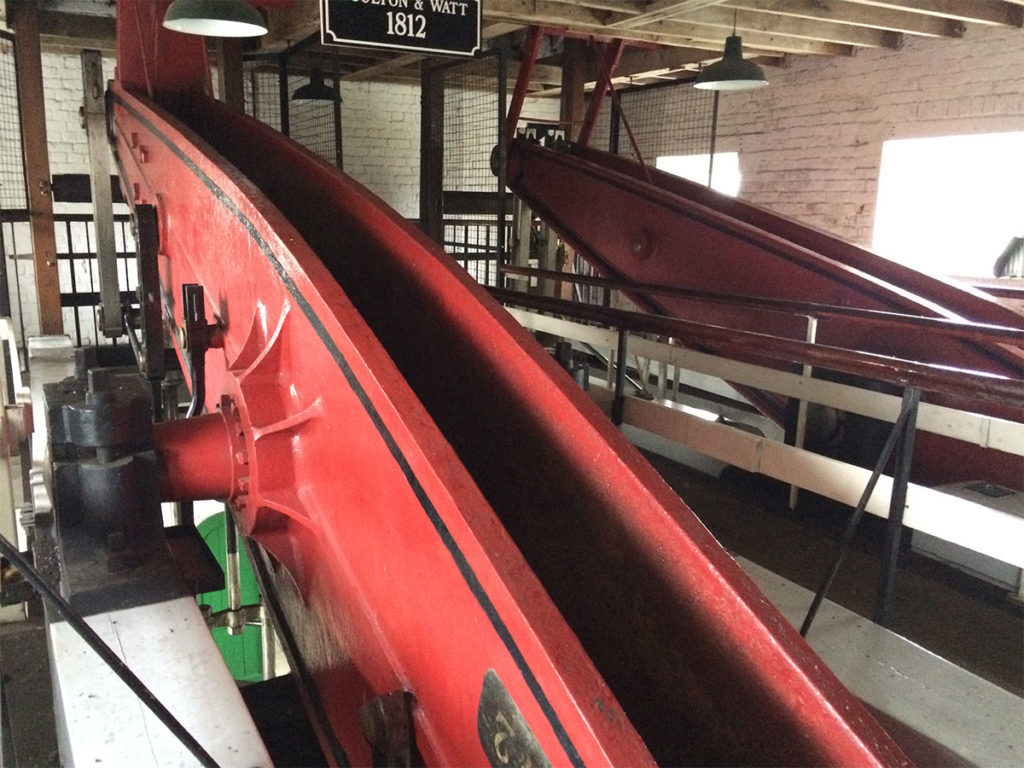

Both the 1812 Boulton and Watt, and the 1846 Harvey engine (in its final form) are in working condition, and are steamed publicly on several weekends through the summer months from a coal fired Lancashire boiler. When the Pumping Station is in steam, it actually carries out the job for which it was built as the electrically powered pumps, that now normally do the job, are switched off. Read more about these wonderful machines in detail in the Engines section.
Our Boiler, Engines and Pump – A brief history
| 1809 | 36” Boulton and Watt engine installed with wooden beam. Replaced in 1846 |
| 1810 | Kennet & Avon Canal opened |

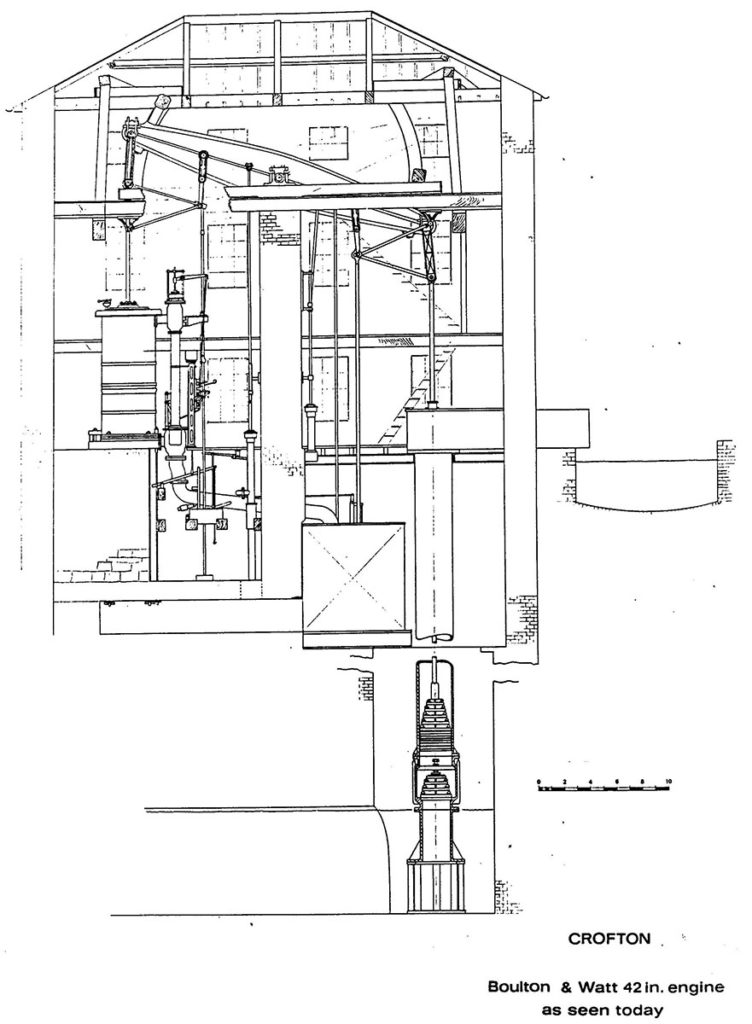

| 1812 | Current 42” (later to become No. 1) Boulton and Watt engine installed |
| 1836 | Wilton Water formed to provide main source of fresh water for pumping station |
| 1843 | Two new Cornish boilers installed to replace three ageing Waggon boilers |
| 1845 | No. 1 engine converted to Cornish steam cycle |
| 1846 | 36” Boulton and Watt engine replaced with Sims compound engine (now known as No. 2 engine) |
| 1859 | Brick chimney built |
| 1906 | Two Lancashire boilers in place |
| 1908 | The No. 2 Sims engine converted to Cornish cycle by Harvey & Co. of Hayle |
| 1959 | Chimney failure and engines unable to run |
| 1968 | Kennet & Avon Canal Trust bought Crofton from British Waterways for £75 |
| 1971 | Both engines restored and steamed |
| 1987 | Current Lancashire boiler installed |
Sustaining Crofton’s Heritage
During the project ‘Our Crofton Story‘, which was supported by a significant grant from the National Lottery Heritage Fund (NLHF), the Kennet and Avon Canal Trust carried out capital repairs and improvements at Crofton and renewed interpretation across the site. The project was formally completed at the end of 2020. The Trust is keen to carry on the excellent work that has been started, in order to capitalise on the investment made by NLHF and broaden the audiences engaging with Crofton’s unique heritage.
